Product Category : Bone Plates

Product Name :

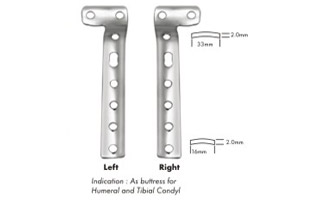

`L`- Butterss Plates(Double Bend)Fixation with 4.5 mm / 6.5 mm Screws

Left

Cat. No.

No. of Holes

Length mm

525.03L	3	69
525.04L	4	85
525.05L	5	101
525.06L	6	119

Right

Cat. No.

No. of Holes

Length mm

525.03R	3	69
525.04R	4	85
525.05R	5	101
525.06R	6	119

Product Name :

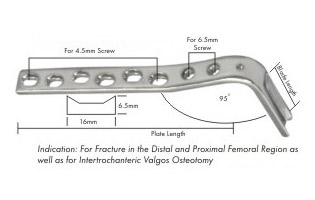

Condylar Plates 95° with Dynamic Compression Holes

Cat. No.

No. of Holes

Blade Length
mm

Plate Length
mm

526.051	5	50	92
526.052	5	60	92
526.053	5	70	92
526.054	5	80	92

526.071	7	50	124
526.072	7	60	124
526.073	7	70	124
526.074	7	80	124

526.091	9	50	156
526.092	9	60	156
526.093	9	70	156
526.094	9	80	156

526.121	12	50	204
526.122	12	60	204
526.123	12	70	204
526.124	12	80	204

526.141	14	50	236
526.142	14	60	236
526.143	14	70	236
526.144	14	80	236

526.161	16	50	268
526.162	16	60	268
526.163	16	70	268
526.164	16	80	268

Product Name :

Angled Blade Plates 130° with DCP Holes

Cat. No.

No. of Holes

Blade Length
mm

Plate Length
mm

527.601	4	60	73
527.701	4	70	73
527.801	4	80	73
527.901	4	90	73

527.602	6	60	104
527.702	6	70	104
527.802	6	80	104
527.902	6	90	104

527.603	9	60	152
527.703	9	70	152
527.803	9	80	152
527.903	9	90	152

527.604	12	60	200
527.704	12	70	200
527.804	12	80	200
527.904	12	90	200

Untitled Document

CATEGORY : Bone Plates
Click to view the product specification

1.Mini Fragment Plates Fixation with 2.0 mm Screws	15.Narrow Dynamic Compressioon Plate Fixation with 4. 5 mm / 6.5 mm Screws
2.Dynamic Compression Plates Fixation with 2.7 mm Screws	16.Broad Dynamic Compression Plate Fixation with 4.5 mm / 6.5 mm Screws
3.Straight Reconstruction Plates Fixation with 2.7 mm Screws	17.`T` Plate Fixation with 4.5 mm / 6.5 mm Screws
4.One Third Tubular Plates Fixation with 3.5 mm Screw	18.T-Butterss Plate(Double Bend) Fixation with 4.5 mm / 6.5 mm Screws
5.Small D.C. Plates, Fixation with 3.5 mm Screws	19.`L`- Butterss Plates(Double Bend)Fixation with 4.5 mm / 6.5 mm Screws
6.T Plates, Fixation with 3.5 mm Screws	20.Condylar Plates 95° with Dynamic Compression Holes
7.T Plates, Oblique Angle, Fixation with 3.5 mm Screws	21.Angled Blade Plates 130° with DCP Holes
8.Straight Reconstruction Plate 3.5 mm	22.DHS/ DCS Screws
9.Clover Leaf Plates, Fixation with 3.5 mm, 4.0 mm Screws	23.DHS Barrel Plates with Round Holes 130° / 135° / 140° /150°
10.Limited Contact Dynamic Compression Plate (LC-DCP) Fixation with 3.5 mm Screws(Small)	24.DHS Barrel Plates with DC Holes 130° / 135° / 140° /150°
11.Limited Contact(LC-DCP)Dynamic Compression Plate Fixation with 4.5 mm Screws(Narrow)	25.DCS Barrel Plates 95° with `DC` Holes
12.Limited Contact Dynamic Compression Plates (LC-DCP)Fixation with 4.5 mm Screws(Broad)	26.Condylar Butter Plates
13.Straight Reconstruction Plate Fixation with 4.5 mm/ 6.5 mm Screws	27.Lateral Tibial Head Buttress Plate 4.5 mm with Dynamic Compression Holes and Slot for Tension Device
14.Semi – Tubular Plates, Fixation with 4.5 mm Screws
